Free 2026 London Planning Report — Dormer Loft Conversion Drawings in Hillingdon UB10

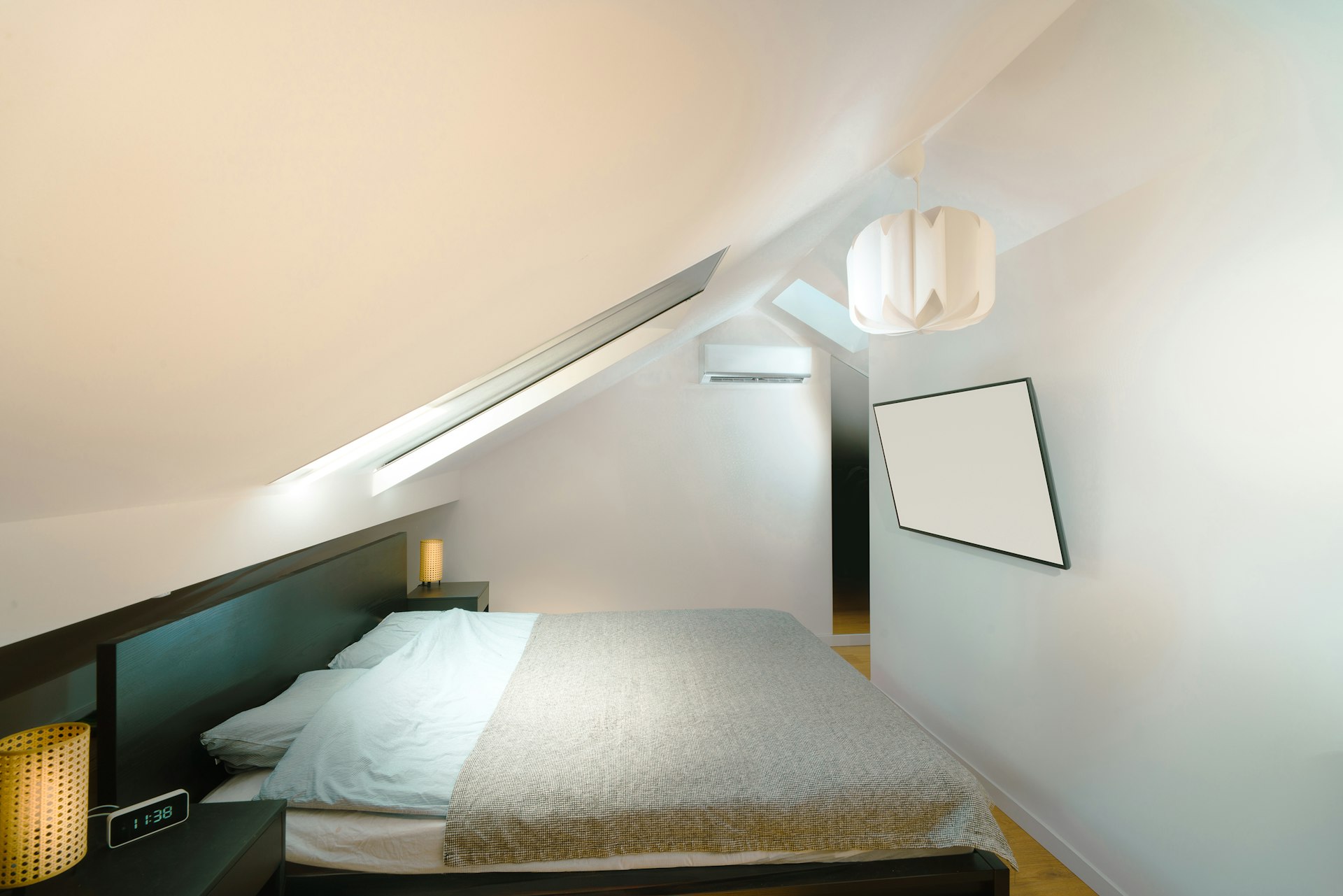

Loft conversion with skylights in a 1930s Hillingdon UB10 semi-detached house
Hillingdon · UB10 · Hillingdon

Dormer Loft Conversion Drawings in Hillingdon UB10

Fixed-fee, MCIAT-chartered dormer loft conversion drawings for Hillingdon (UB10) homeowners — London Borough of Hillingdon validation and local constraints handled from the start.

Free Hillingdon planning assessment

Tell us your Hillingdon (UB10) address and project. A fixed quote and free planning appraisal land within one working day.

No obligation · No spam · Reply within 1 working day

UB10 spans two distinct worlds: the historic village cores of Ickenham and Hillingdon Village, and the large belt of 1930s suburban semis and detached houses around them where most rear and loft projects happen. On the suburban stock the design conversation is about matching established roofline and frontage patterns, which Hillingdon's guidance sets out clearly.

Inside either village conservation area the emphasis shifts to protecting period character around St Giles and St John the Baptist churches, so materials, rooflines and boundary treatments face tighter control. Because the two conservation-area boundaries are compact, we confirm exactly where a UB10 property falls before choosing a permitted-development or full-application route.

Loft conversion with skylights in a 1930s Hillingdon UB10 semi-detached house
Isometric illustration of a Hillingdon UB10 home dormer loft conversion drawings design
Proposed floor plan
Hillingdon UB10

Planning in Hillingdon (UB10): what to know before you apply

Most UB10 householder work sits on interwar suburban housing outside the conservation areas, where Hillingdon has well-established expectations for rear depth, side returns and dormers. The Ickenham Village and Hillingdon Village conservation areas are the exceptions — there, heritage-led design and usually a full application are the right approach.

Typical Hillingdon housing stock

Two protected village centres — Ickenham around St Giles Church and Hillingdon Village around St John the Baptist — of period cottages and Victorian houses, ringed by the substantial 1930s semi-detached and detached suburban stock that makes up most of the wider UB10 postcode.

Streets we regularly draw for in Hillingdon

Swakeleys Road · Austin's Lane · Royal Lane · Vine Lane

Dormer Loft Conversion Drawings for Hillingdon (UB10) homes: the package and the process

Every dormer loft conversion drawings we prepare for an Hillingdon property is drawn to London Borough of Hillingdon’s validation standards and tuned to the UB10 constraints above. Here is what the drawing package covers and how the process runs from first survey to approval.

A dormer is the loft conversion most London homeowners picture first: a box-shaped or L-shaped addition built into the rear roof slope that turns a cramped loft void into a full-height bedroom or bathroom. Box dormers sit squarely on the main rear slope; L-shaped dormers link that main-roof dormer to a second one over the rear closet wing found on most Victorian and Edwardian terraces, roughly doubling the usable floor area for a similar planning risk.

DrawingsDirect draws both types for London roofs every week. Because the permitted development rules for dormers turn on volume, elevation and location as much as design, we check your eligibility for a Lawful Development Certificate before recommending a full planning application — and if your roof actually suits a hip-to-gable or mansard conversion better, we say so rather than drawing the wrong scheme.

Is a rear dormer loft conversion permitted development in London?

A single rear dormer is the loft conversion most likely to qualify as permitted development in London, provided it stays within the volume allowance — 40 cubic metres for terraced houses, 50 cubic metres for detached and semi-detached homes. The dormer must not extend beyond the highest part of the existing roof, should be set back from the eaves where practical, and is normally finished in materials that match the existing roof. Where the numbers work, we recommend a Lawful Development Certificate rather than a full planning application, because it is faster and gives you a legal record that the work was lawful.

Box dormer or L-shaped dormer — which suits a London terrace?

A box dormer is a simple flat-roofed addition set into the rear roof slope, adding headroom and floor area over the main roof void. An L-shaped dormer links that main-slope dormer to a second dormer over the rear closet wing — the small rear addition found on most Victorian and Edwardian London terraces — and is popular because it captures far more usable space over the stairwell for a similar planning risk. Both are generally assessed the same way for permitted development, but the closet-wing element of an L-shaped dormer needs its own structural support, which we detail on the drawings and coordinate with the structural calculations.

  • Box dormer: single flat-roofed addition on the main rear slope
  • L-shaped dormer: main-slope dormer combined with a closet-wing dormer
  • Both are typically finished in matching brick, tile-hung or render to suit the host roof
Typical dormer loft conversion drawing packages
Dormer typeTypical routeStructural scopeFee from
Single rear box dormerPermitted development / LDCStandard joist and beam upgrade£1,100
L-shaped rear dormerPermitted development / LDCAdditional closet-wing support£1,300
Front dormerHouseholder planningStandard joist and beam upgrade£1,600
Dormer in a conservation areaHouseholder planningStandard joist and beam upgrade£1,600

Also in Hillingdon UB10

Planning PermissionPlanning DrawingsArchitectural DrawingsBuilding Regulations DrawingsLoft Conversion DrawingsDormer Loft Conversion Drawings across HillingdonDormer Loft Conversion Drawings across London
FAQ

Dormer Loft Conversion Drawings in Hillingdon UB10 — FAQs

How much do dormer loft conversion drawings cost in London?+
A single rear box dormer on the permitted development route typically starts around £1,100 for a full drawing set. L-shaped and front dormers cost more because of the extra structural design and, for front dormers, the planning application itself — we quote a fixed fee once we have seen your roof.
Is my dormer definitely permitted development?+
Not automatically — it depends on the volume you are adding, which elevation the dormer sits on, and whether a conservation area or Article 4 direction applies to your address. We check this free before recommending a route, and if a previous loft or roof extension has already used up part of your allowance, we factor that into the calculation too.
How long do dormer loft conversion drawings take?+
Typically around 7 days from survey to a full drawing set delivered to your online portal, whether you are going down the Lawful Development Certificate route or full planning.
Will I need an architect for a dormer loft conversion?+
No — as MCIAT-chartered architectural technologists we produce the same council-accepted drawings an architect would, typically at a lower fee, with structural calculations coordinated in-house.
What if my roof suits a different loft conversion type?+
If your roof is hipped, a hip-to-gable conversion may add more space than a dormer alone; if you are in a conservation area needing a full rebuild of the roof slope, a mansard may suit better. We assess your roof against all three before recommending one.
Do I need planning permission for a loft conversion in Hillingdon?+
Hillingdon's Metro-land semis and detached houses in Ruislip, Eastcote and Ickenham suit hip-to-gable and dormer lofts, which frequently qualify as permitted development within the volume limits. The exceptions are the conservation areas — Ruislip Village, Uxbridge and Northwood — and green-belt land toward the Colne Valley. We check your address and can confirm permitted development with a Lawful Development Certificate.
How does the Colne Valley green belt affect my Hillingdon project?+
On green-belt properties toward the western edge of the borough, extensions are assessed against strict limits on disproportionate additions to the original dwelling. It does not rule out an extension, but scale and siting matter and the case must be evidenced carefully. We confirm whether your property is green belt and design a scheme that stays within policy.
Does proximity to Heathrow affect my plans?+
It can toward the south of the borough, where aircraft-noise considerations may influence habitable-room and glazing design. We evidence these considerations within the application where they apply so the council can validate and approve without repeated revisions.
How long does Hillingdon Council take to decide?+
Hillingdon determines most householder applications within the statutory eight-week period once validated; green-belt and conservation cases can involve additional consultation. We prepare Hillingdon submissions to the council's validation checklist to avoid the drawing queries that cause most delays.
How much do planning drawings cost in Hillingdon?+
We work to a fixed fee agreed upfront, usually around 30% below an architect's charge for the same council-accepted drawings, with free redraws until Hillingdon approves. A dormer loft, a suburban extension and a green-belt case differ in the evidence required, so we confirm the fee once we understand your project rather than billing by the hour.
